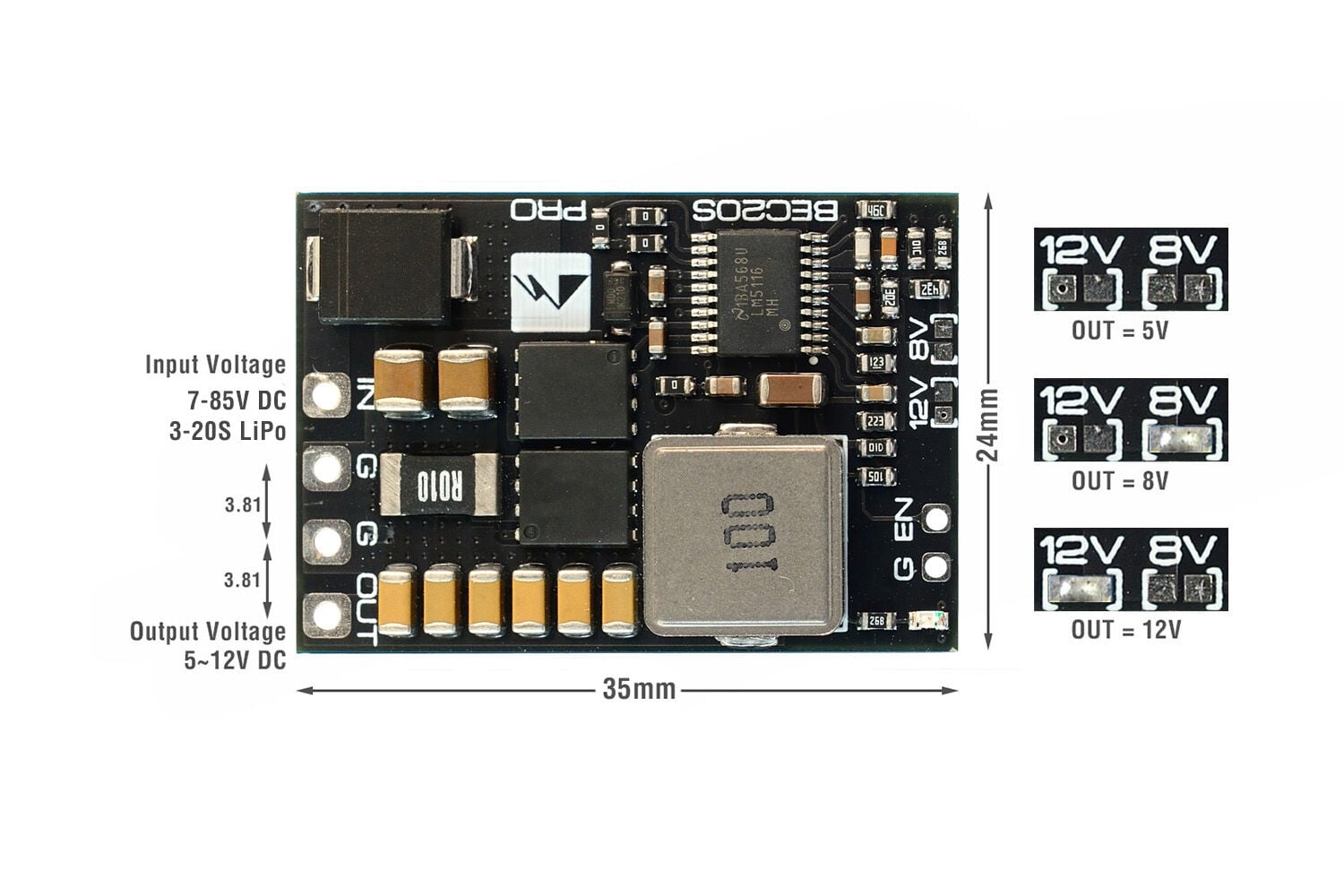

BEC20S-PRO, 7-85V TO 5V/8V/12V-5A

Features

• Wide 7V to 85V Operating Input Range with TVS protection
• 3x Output voltage options,  5.2V, 8V or 12V.  Default 5.2V.
• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
• Supports continuous output current of up to 5A,  peak current of 9A.
• Output ripple  30mV (VIN=50V,  Output 5.2V @ 5A),  60mV (VIN=50V,  Output 12V @ 5A)
• EN pin: if the EN pin is below 0.5 V,  Output shutdown.
• Standby current: 5~10mA
• No reverse-input voltage protection
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Dropout voltage: 2V  (Input>=14V is required for stable 12V output)
• Pins distance: 3.81mm
• Size & Weight: 35 x 24 x 5.5mm,  5g
• Packing: 1pc/package
• 3D step
