HOLYBRO

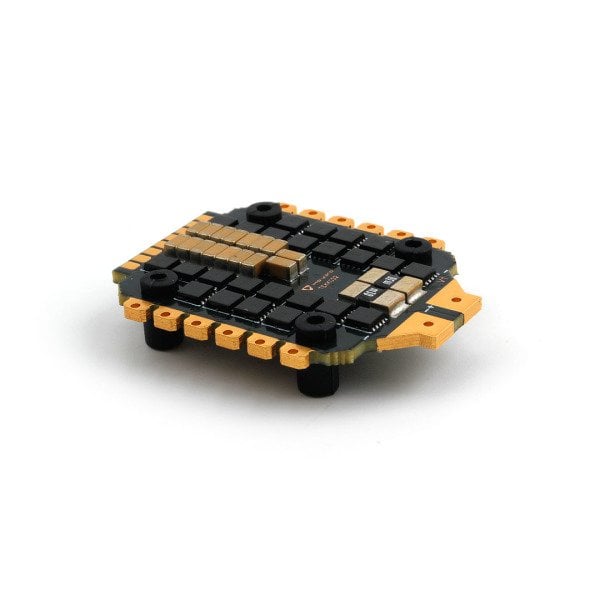

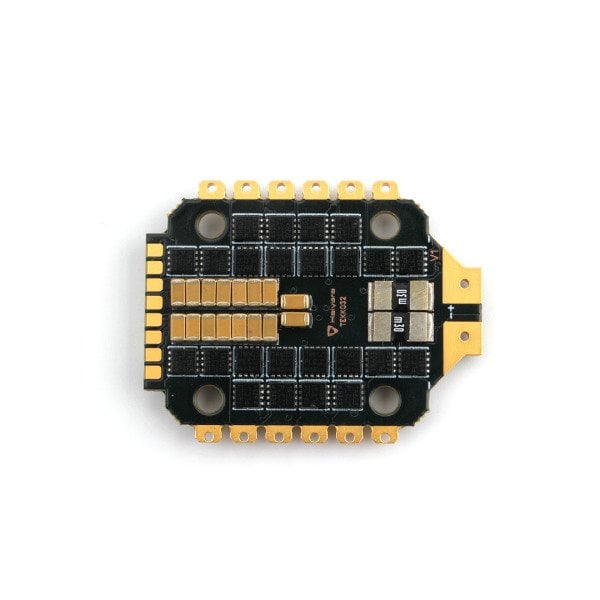

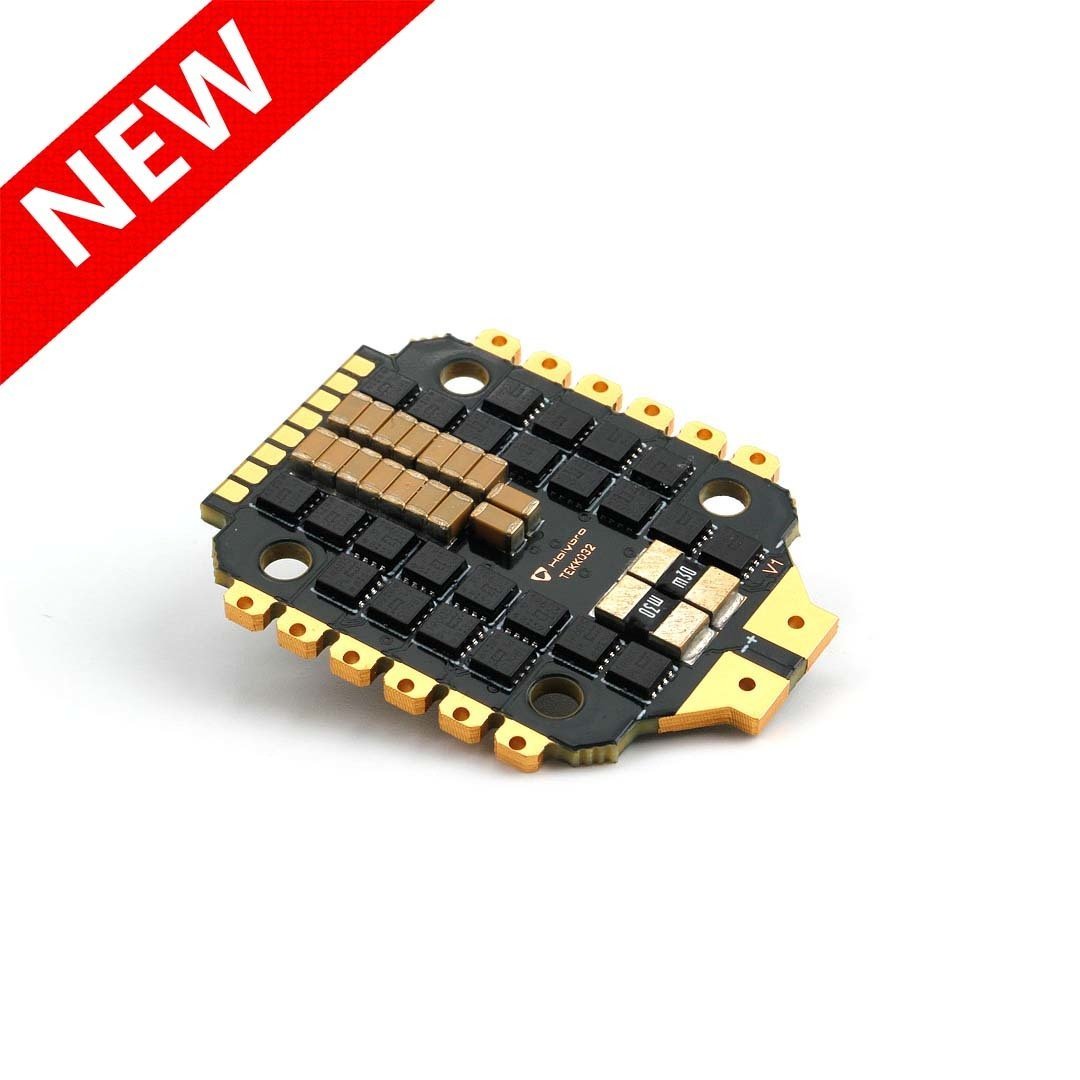

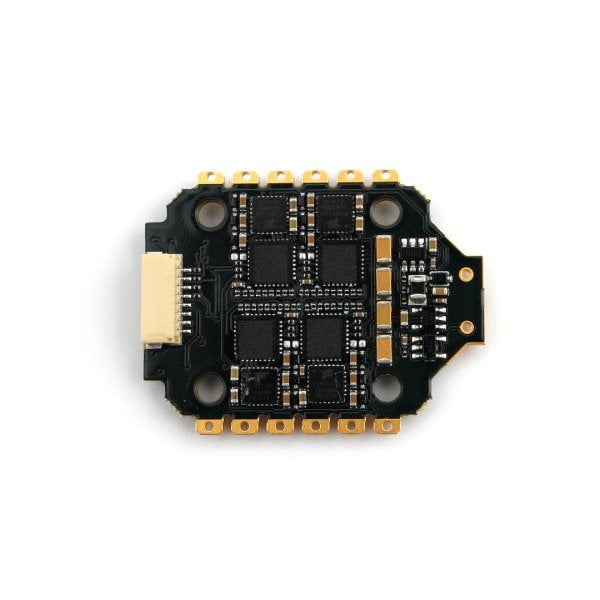

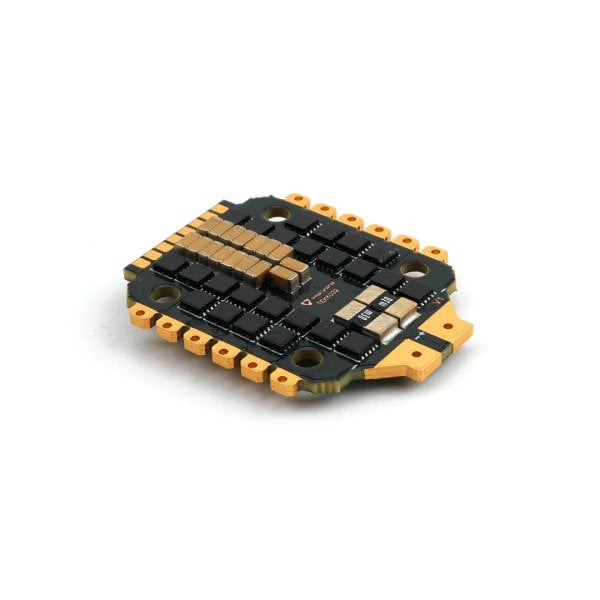

Tekko32 F4 4in1 mini 45A ESC
0 - Yorum Yap
Stok Kodu
31098
4.470,00 TL KDV Dahil
419,70 TL'den
başlayan taksitlerle!
başlayan taksitlerle!
SPEC:
-
F4 MCU with BLHELI32 firmware
-
Maximum PWM output upto 96K (default 48K)
-
Amperage meter scale ratio has been adjusted to 168.
-
PWM input, TLM supported
-
Voltage output (VBAT)
-
NO output BEC
-
Supports oneshot / Multishot / Dshot PWM
-
Supports damped light
-
Supports 3-6S lipo input
-
Ext. cap needed for 6s (1000uf 35v for 6s usage.)
-
Mounting holes: 20x20mm(M3)
-
Size:30 x 39 mm
-
Weight: 7.2g

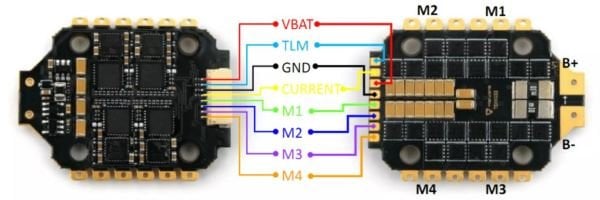

PIN MAP:

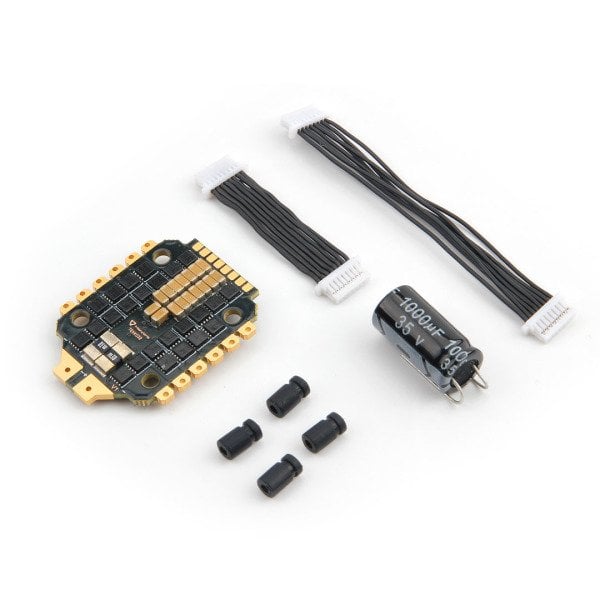

Package included:
Tekko32 F4 4in1 mini 45A ESC *1
M2 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacito: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
M2 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacito: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Downloads:
Some Tips:
