HOLYBRO

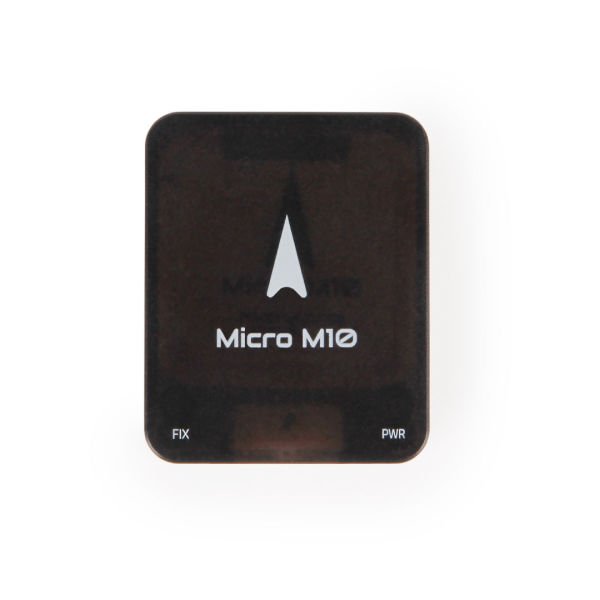

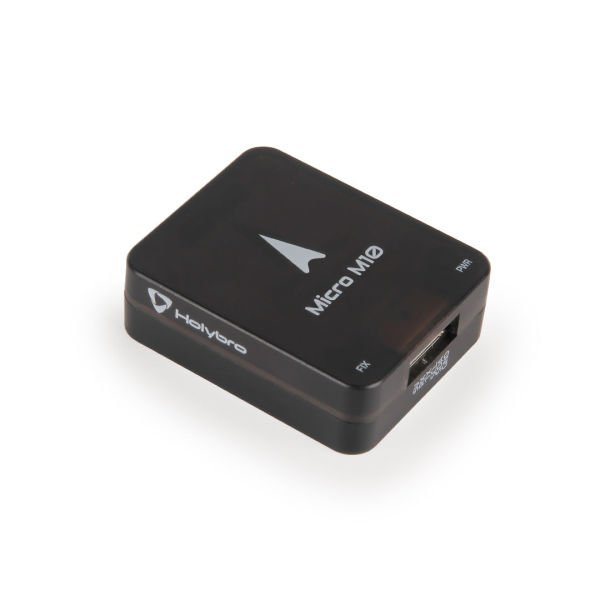

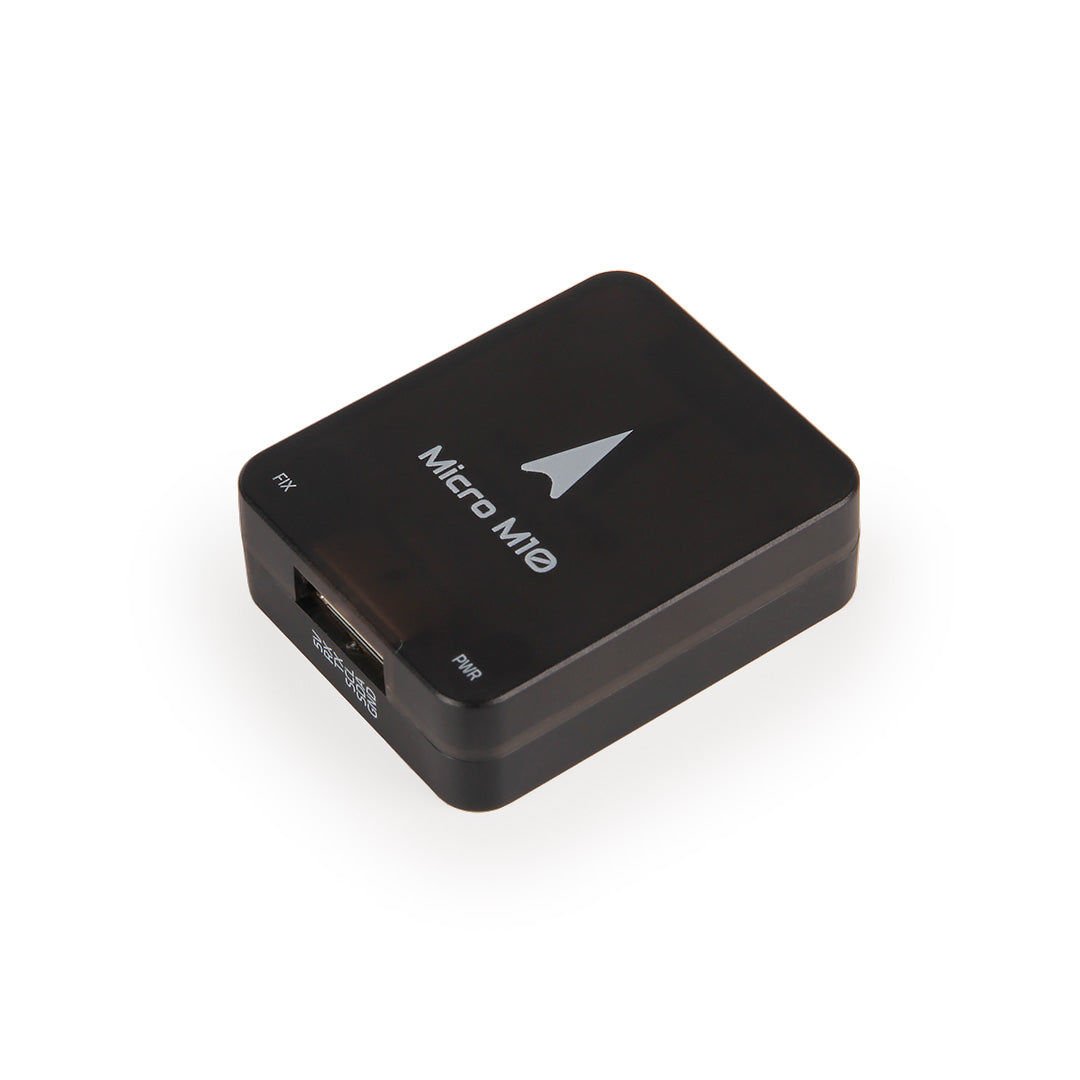

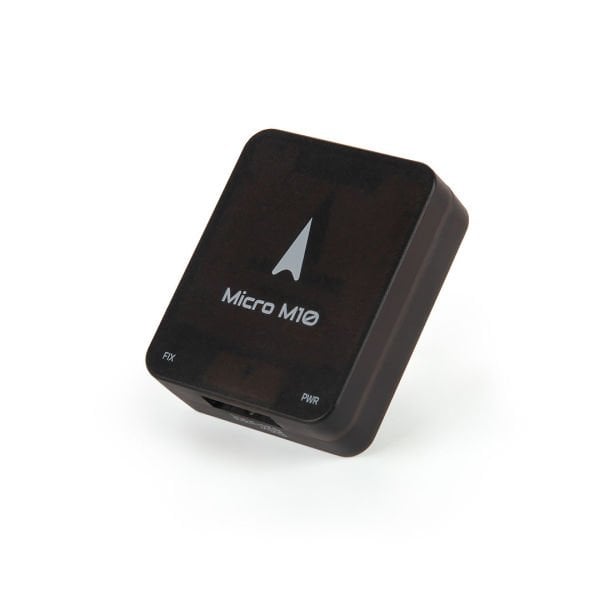

Micro M10 GPS with Case

0 - Yorum Yap
Stok Kodu
12044
3.030,00 TL KDV Dahil
284,49 TL'den
başlayan taksitlerle!

Description:

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.
It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Features

  • Newest Ublox 10th Gen GNSS
  • Fast & Accurate Positioning
  • IST8310 Compass
  • Small Form Factor

Specifications:

  Holybro Micro M10 GPS Holybro Micro M9N GPS
GNSS Receiver Ublox M10 Ublox M9N
Number of Concurrent GNSS Up to 4 GNSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS
Up to 4 GNSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS
Frequency Band - GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1
- GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1
Compass IST8310 IST8310
Output Protocol - UBX (U-blox)
- NMEA
- UBX (U-blox)
- NMEA
Accuracy 2.0m CEP 1.5m CEP
Nav. Update Rate  Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)
Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
Default Baud Rate 115200 115200
Input Voltage  4.7-5.2V 4.7-5.2V
Port Type JST-GH-6P JST-GH-6P
Antenna 25 x 25 x 4 mm ceramic patch antenna 25 x 25 x 4 mm ceramic patch antenna
Power consumption Less than 200mA @ 5V Less than 200mA @ 5V
Operating Temperature -40~80C -40~80C
Dimension - 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mm (With Case)
- 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mm (With Case)

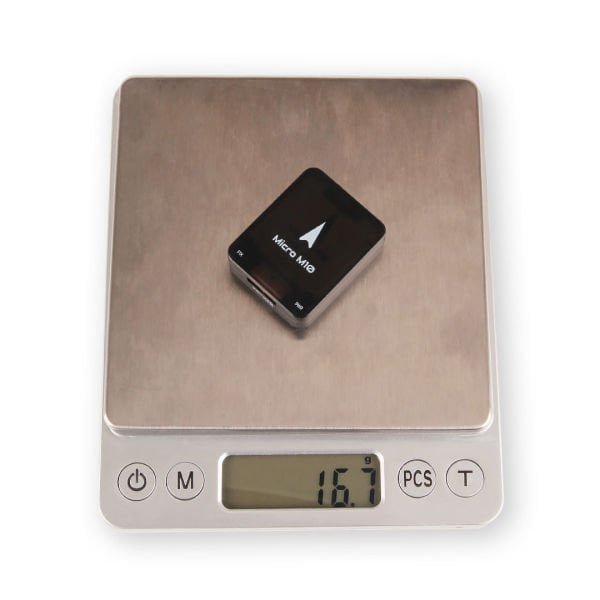

Weight - 14g (w/o Case)
- 16g (With Case)
- 14g (w/o Case)
- 16g (With Case)
Other - LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator

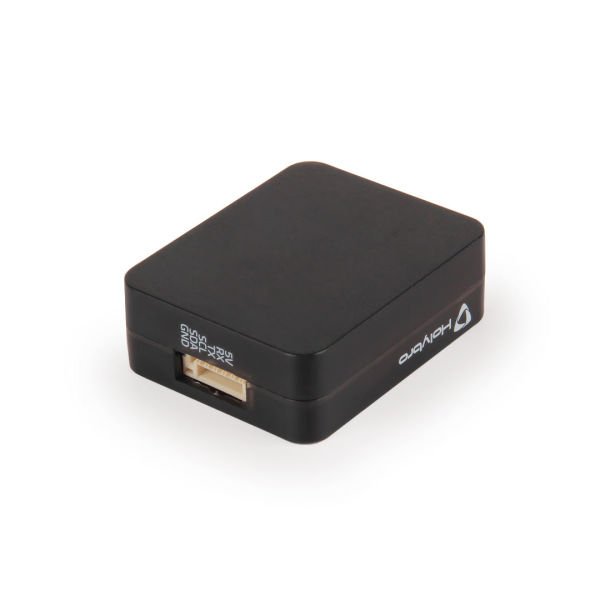

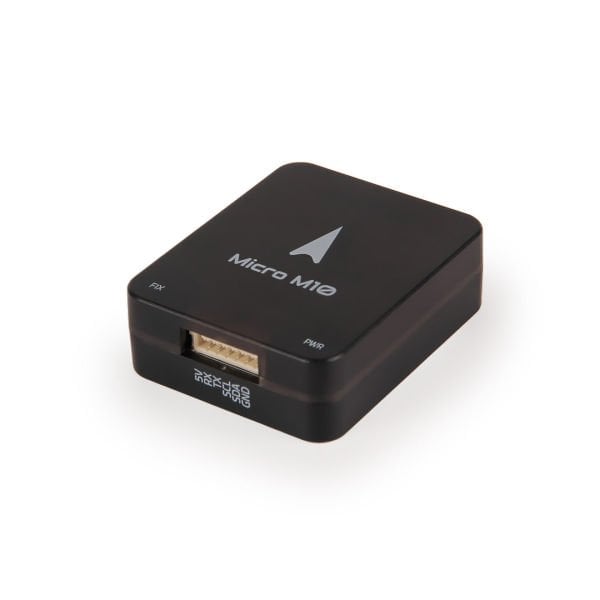

PIN MAP



Reference Link

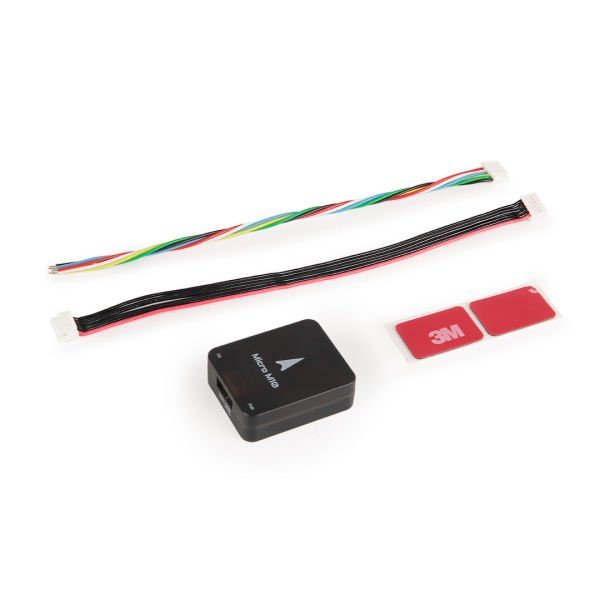

Package Includes:

  • 1x Micro GPS module *1
  • 1x JST GH 6 Position Connector 15 cm
  • 1x JST-GH 6pin Colored Silicon Cable 15 cm
