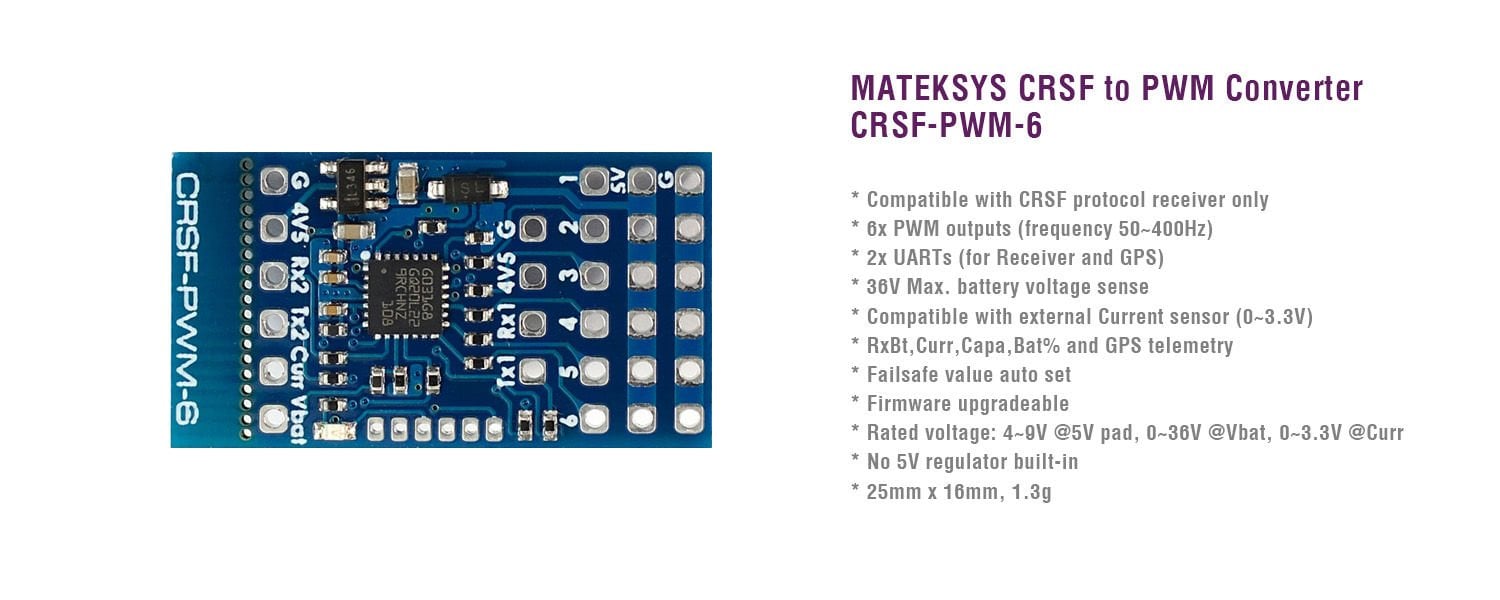

CRSF to PWM Converter CRSF-PWM-6

CRSF-PWM Converter, CRSF-PWM-6

• Compatible with CRSF protocol receiver only
• Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
• 6x PWM outputs
• PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
• 2x UARTs (for Receiver and GPS)
• Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
• 36V Max. battery voltage sense (1K:10K voltage divider built-in)
• Compatible with external Current sensor (0~3.3V)
• Vbat and Current sensor scale configurable
• Failsafe value auto set
• Firmware upgradeable
• Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr

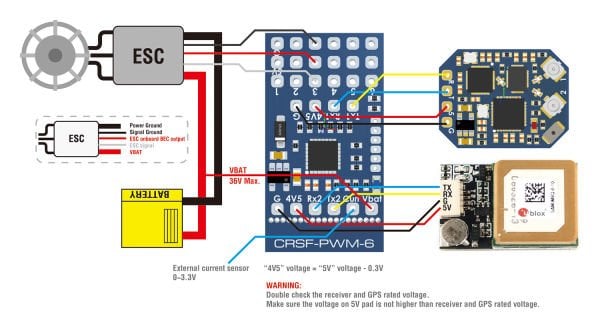

• No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.

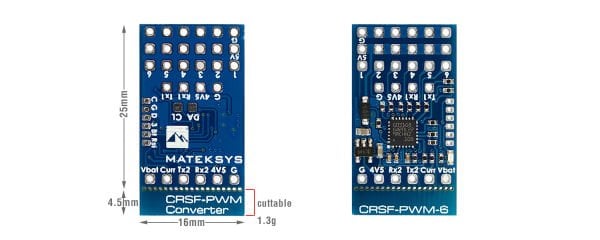

• 25mm x 16mm, 1.3g

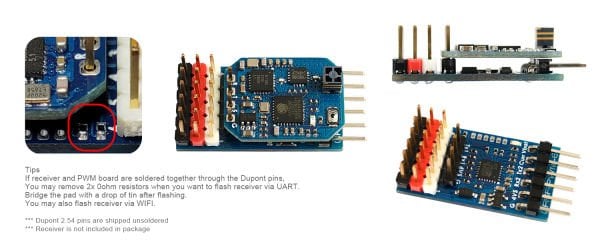

• Packing: 1x CRSF-PWM-6, Dupont 2.54 pins
• Included only converter
